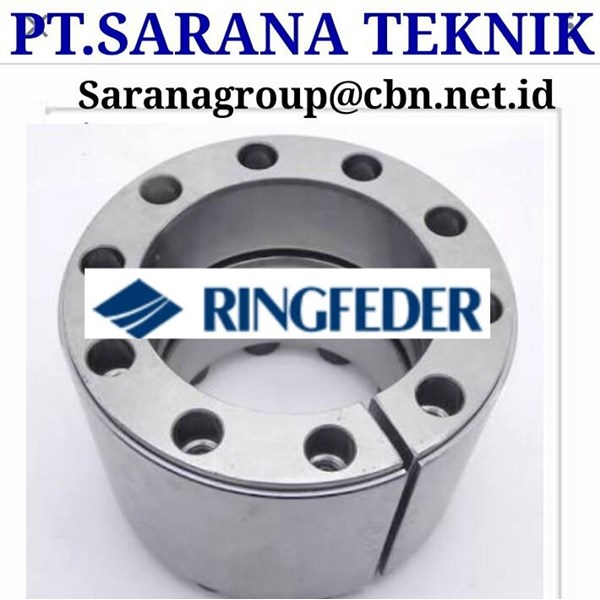

RINGFEDER LOCKING ASSEMBLY
RfN 7012.2
The original RINGFEDER® Locking Assemblies featuring double-tapered thrust rings with self-releasing tapers. They bridge relatively large fit clearances, are easy to install, adjust or remove, but are not self-centering. A pre-centering hub section is usually required. These units are most commonly used on applications in general engineering to transmit high torques and axial loads utilizing larger machining tolerances. Available sizes: metric series for shafts from 16 mm to 1000 mm dia.; Inch series for shafts from 3/4” to 7.875” diameter.
Product details and sizes
RfN 7013.0
RfN 7013.0
These Locking Assemblies are of single-taper design with a self-locking taper providing good self-centering action and concentricity, as well as increased torque capacity. A pre-centering hub section is not required. Integral push-off screws for disassembly are provided. This unit can be placed deep inside a bore due to it’s design. Available sizes: Metric series shafts from 20 mm to 150 mm dia. and Inch series for shafts from 1” to 4” diameter.
